ZAC 60W Jewelry Laser Welder 220V Laser Welding for Jewelry 40J Gold and Silver Soldering Machine
MAIN FEATURES
- INTRODUCTION: ZAC laser welder for jewellery, ideal for Platinum, gold and silver repair and joining in the jewelry industry. Wavelength: 1064nm. Max. Output Power: 150W. Max. Pulse Energy: 40J. Pump Source: Single lamp. Pulse Frequency: 1-10HZ Adjustable level. Aiming and Positioning: Microscope + camera system. Host Power Consumption: ≤2KW. Electricity Demand: 220V±5%, 50HZ. Cooling System: Air cooling. Operating Temperature: 0-25°C. Dimensions: 20.08*11.61*16.54in(L*W*H). Weight: 55.12lbs.
- HIGH EFFICIENCY: With high quality YAG laser source, so that this jewelry welding machine can weld fast with small deformation, small solder joint and small heat affected zone which shows great performance when you weld gold, silver, Platinum, etc. while greatly improve your jewelry making process.
- EASY TO USE: The pulse width, frequency, spot of this jewellery lase machine can be adjusted on your needs which can achieve many welding performance. Whats more, we also provide simple English manual instructions and online service so that you can use it under the guidance.
- WIDE APPLICATIONS: This laser soldering machine for jewellery machine is widely used in many fields, such as mall parts, rings, pendants, bracelets, dentures, mobile phone charger interfaces, hardware, watches, sporting goods, golf heads, medical equipment. Titanium alloy jewelry, especially used for hole patching of gold and silver jewelry, spot welding seam pattern, inlaid parts and other welding.

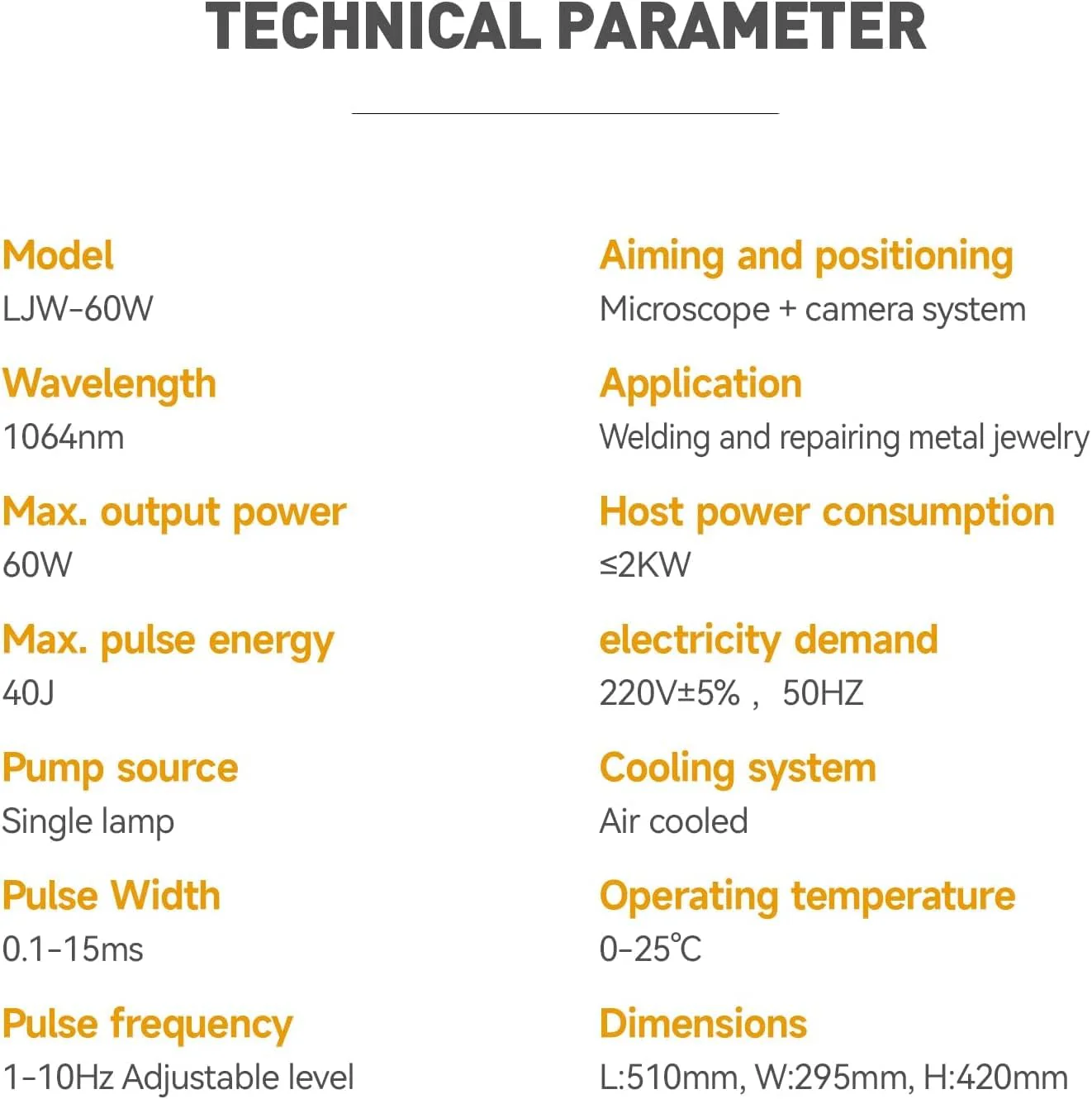

TECHNICAL PARAMETERS

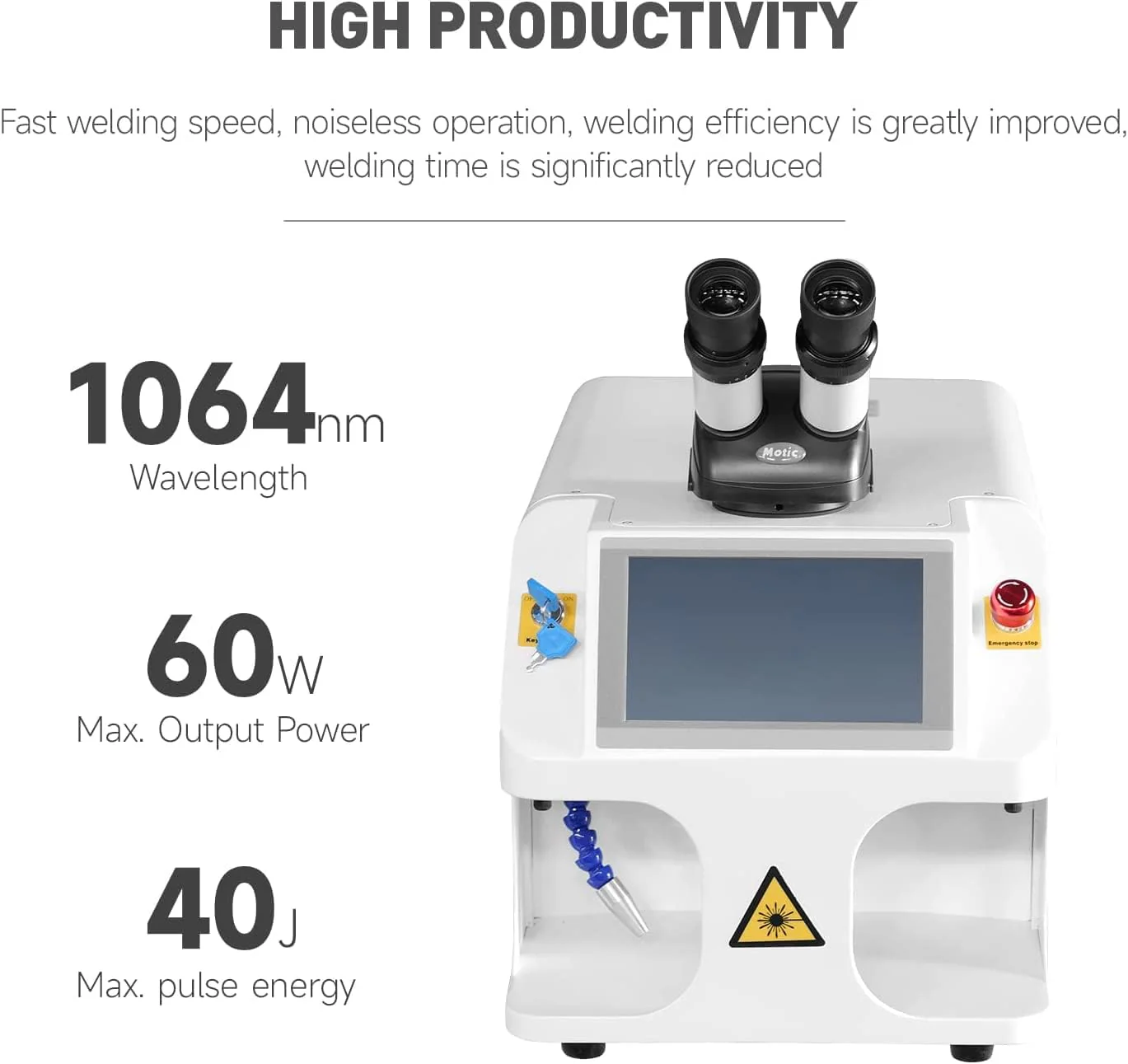

- Wavelength: 1064nm.
- Max. Output Power: 60W.
- Max. Pulse Energy: 40J.
- Pump Source: Single lamp.
- Pulse Frequency: 1-10HZ Adjustable level.

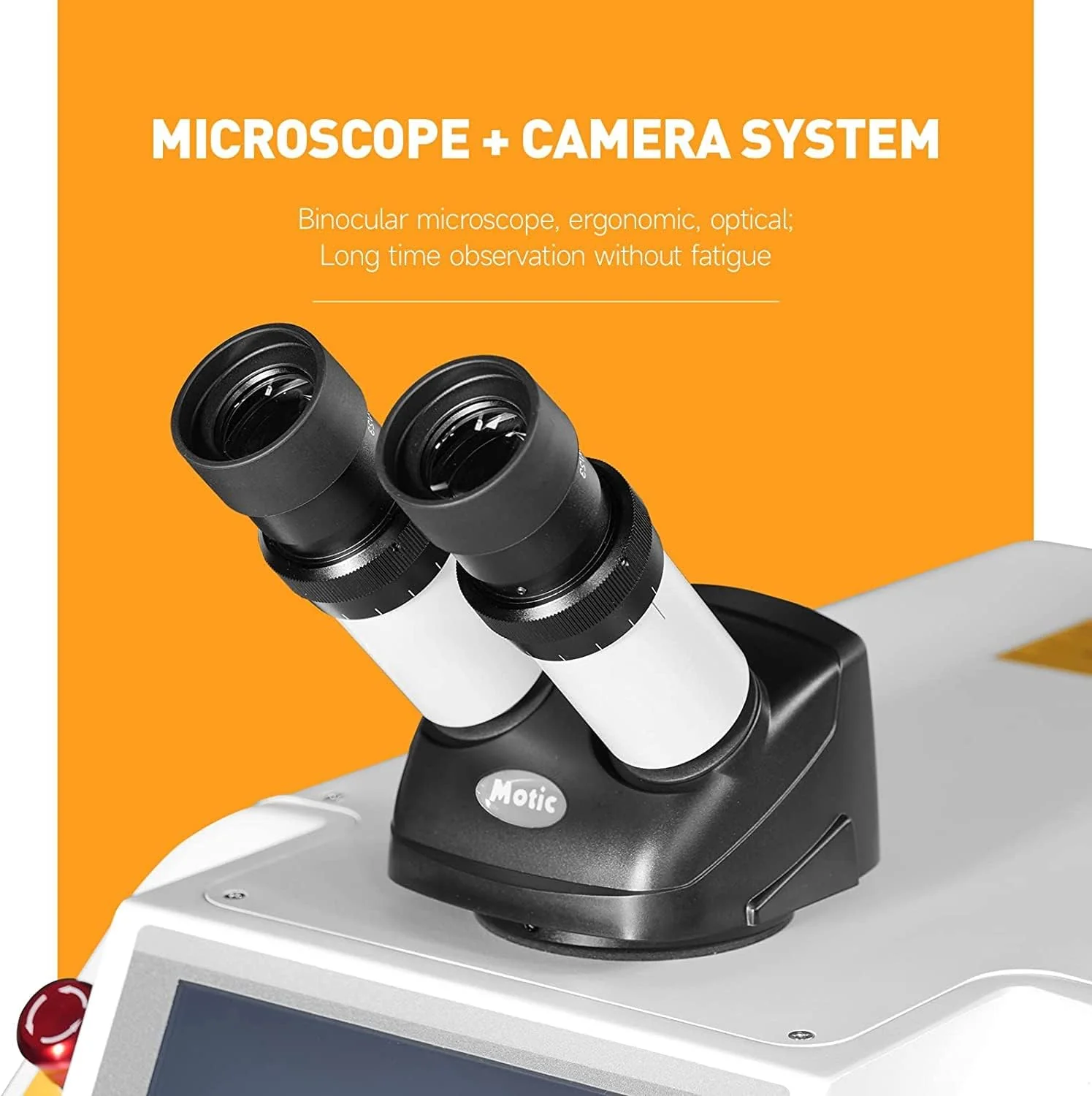

- Aiming and Positioning: Microscope + camera system.
- Host Power Consumption: ≤2KW.
- Electricity Demand: 220V±5%, 50HZ.
- Cooling System: Air cooled.
- Operating Temperature: 0-25°C.

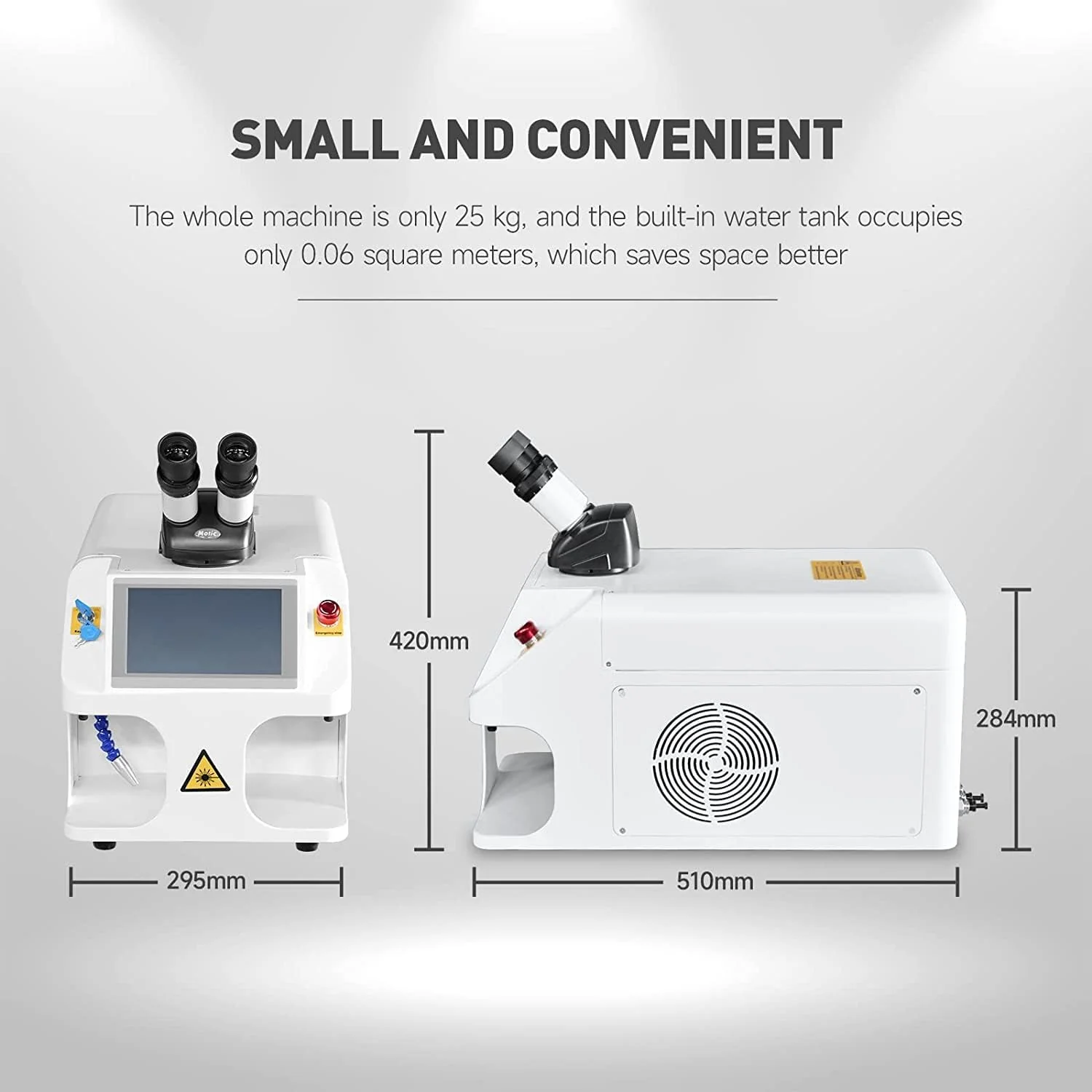

- Dimensions: 20.08*11.61*16.54in(L*W*H).
- Weight: 55.12lbs.
CARING WARRANTY
We provide 1 year warranty for the whole machine. If you have any questions of the machine, please send us email, and our 24 hours customer service will support you.
DELIVERY
- Remote Assistance for operation issues
- Lifetime Online Technical Support
- Free Shipping to Your Door by Air (DHL/UPS/Fedex) about 7-15 Days
- No Import Duty for American Customers.
