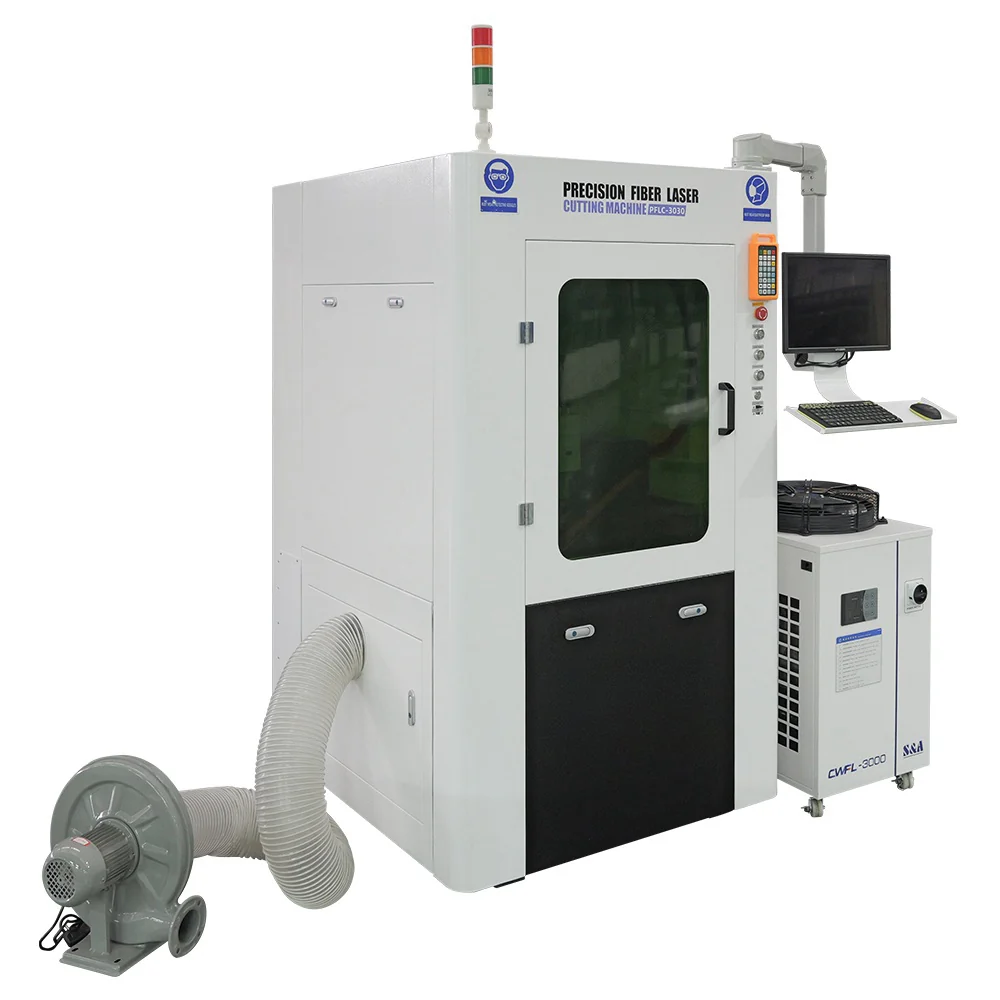

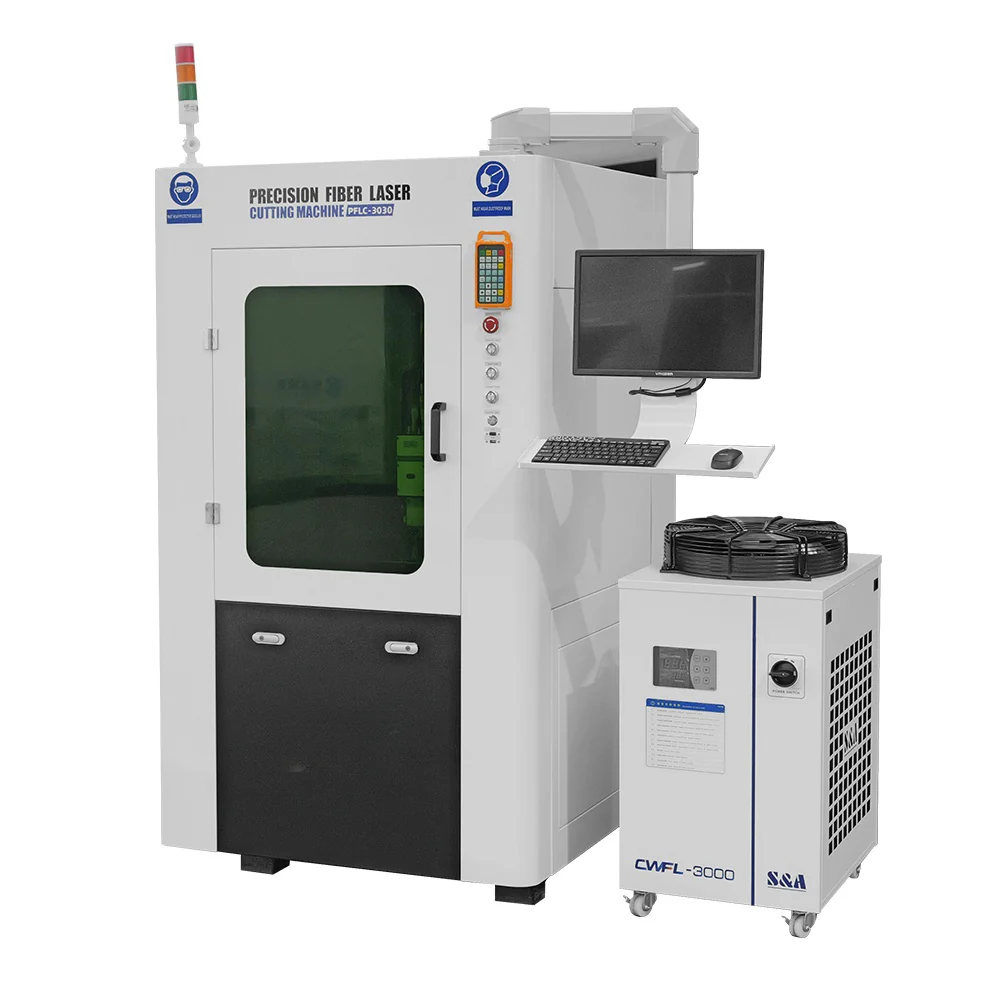

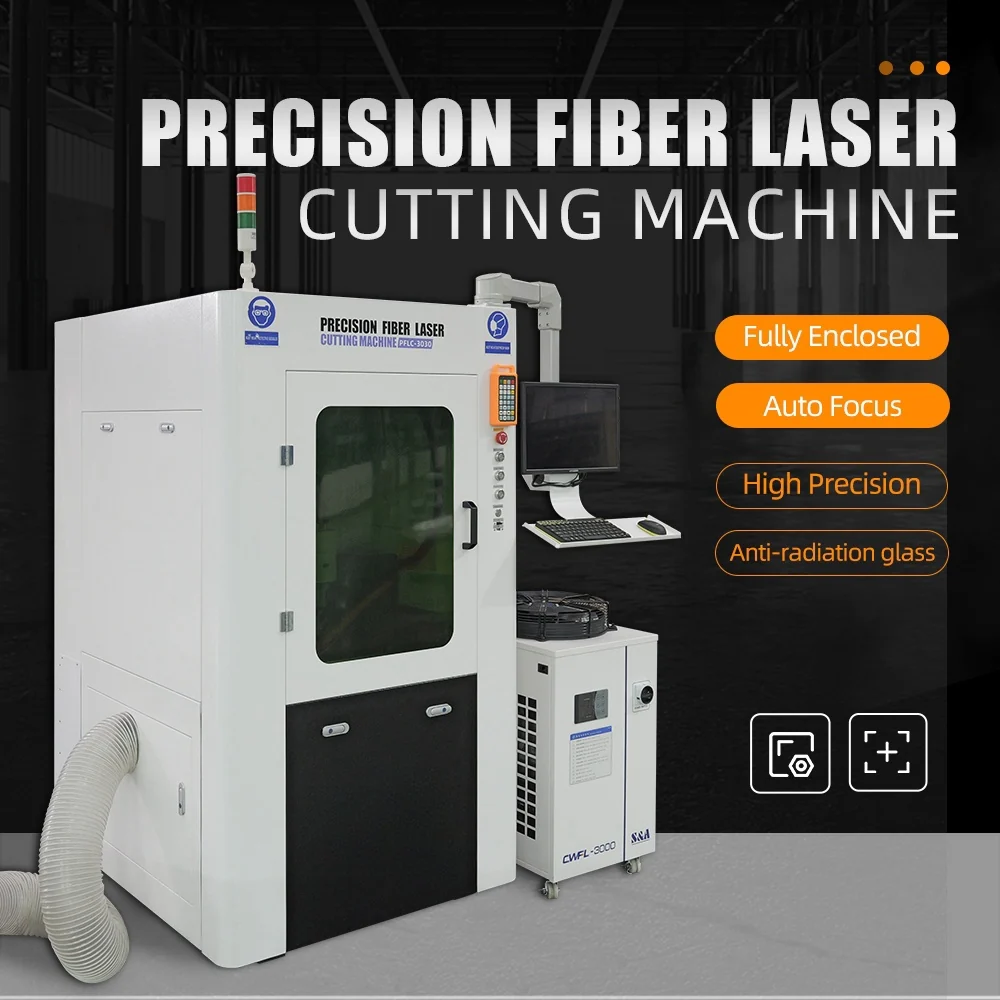

ZAC 3030 High Precision Metal Laser Cutter Machine 1000W/1500W Fiber Laser Cutting Machine with Full Enclosed Cover
MAIN FEATURES
- Parameters: Working Area: 300*300mm, Fiber Laser Power: 1000W~3000W, Laser Wavelength: 1064nm, Beam Quality: <0.373mrad, Max Cutting Accuracy: ±0.03mm, Re-position Accuracy: ±0.01mm, Max Operating Speed: 30m/min, Precision dual ball screw transmission, Industrial circulation water chiller, Working Voltage: 220V/380V 50/60Hz(Transformer Available).

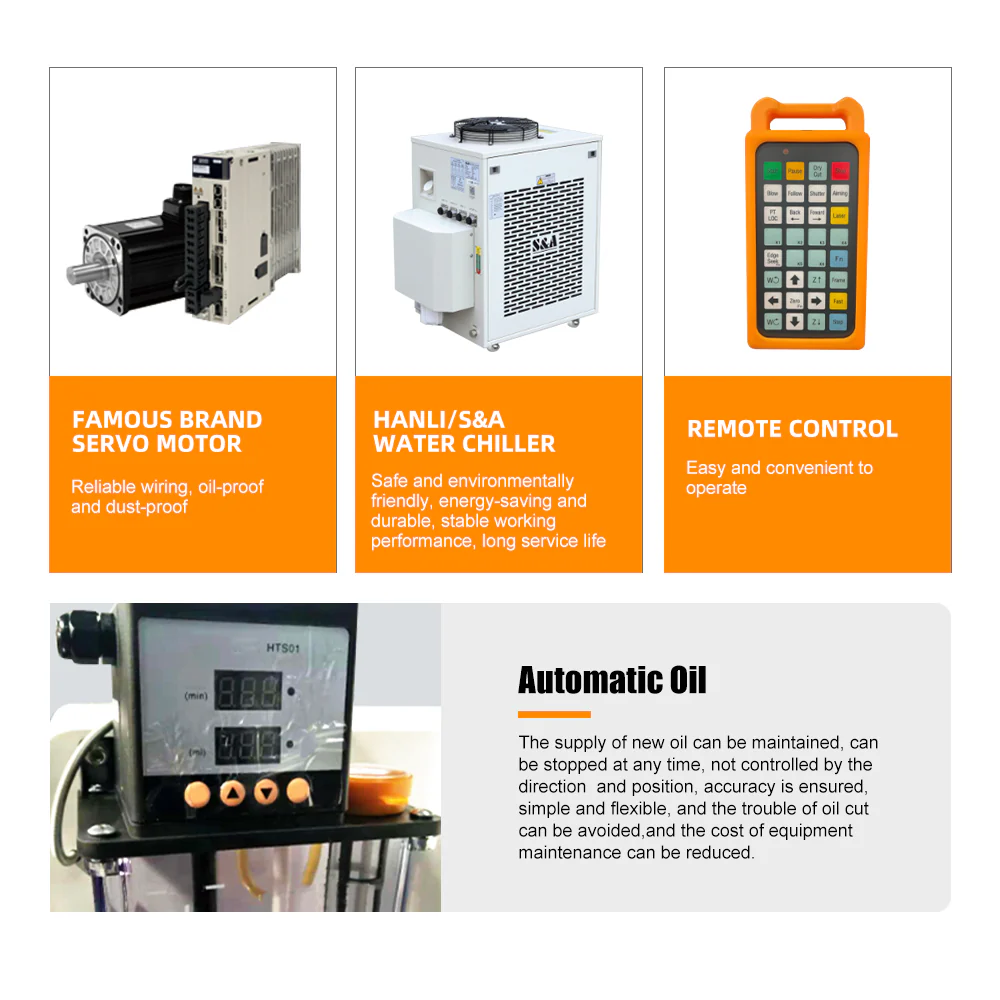

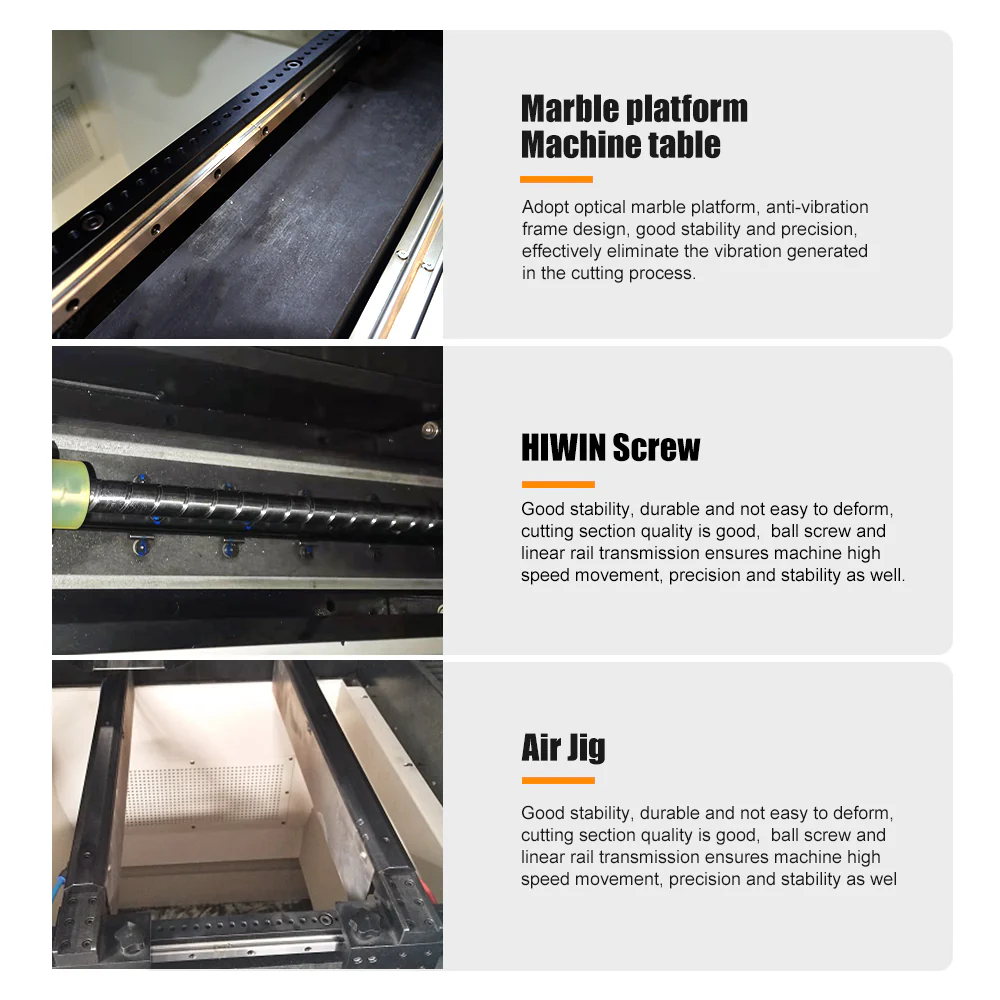

- Main Configurations: Raytools BT220 Laser Cutting Head, CYPONE/CYPCUT Software System, MAX Laser Source, Famous Brand Servo Motor, HANLI/S&A Water Chiller, Automatic Oil, Remote Control, Marble platform Machine table, HIWIN Screw, Air Jig, etc.

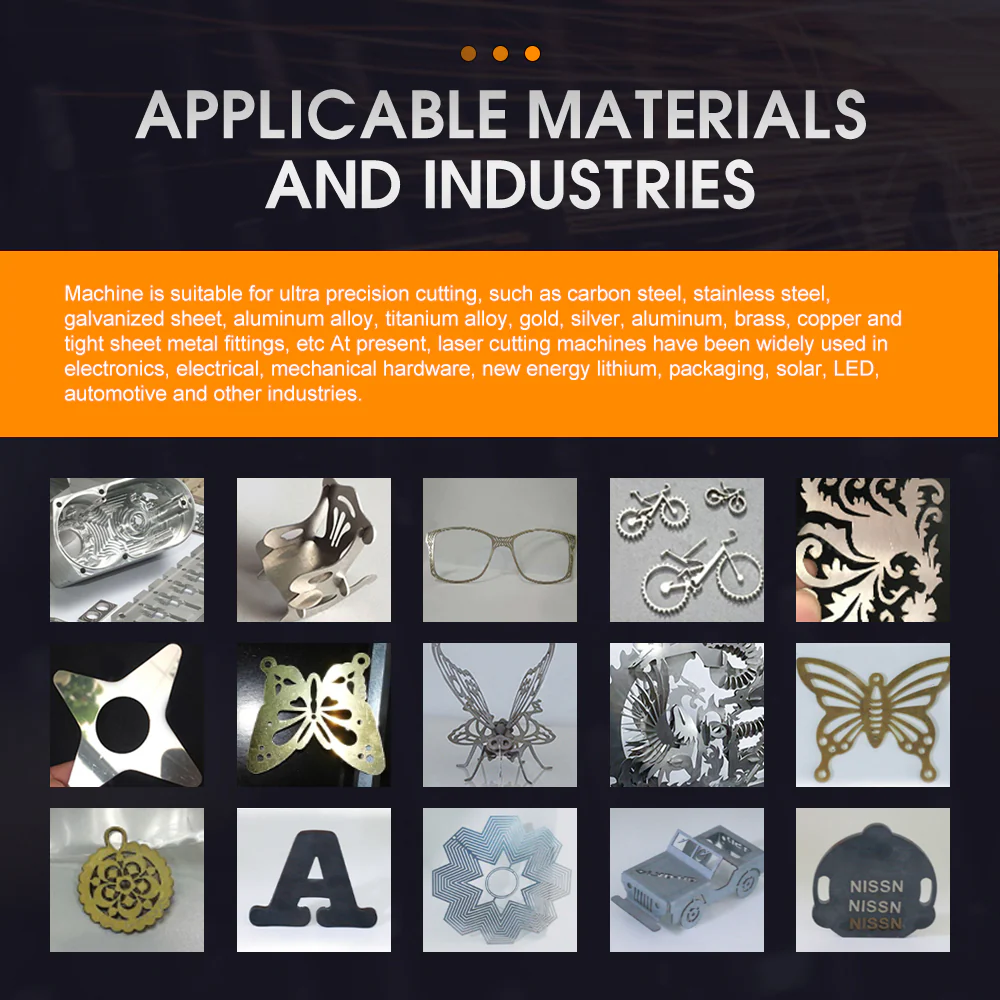

- Applicable Materials and Industries: Machine is suitable for ultra precision cutting, such as carbon steel, stainless steel, galvanized sheet, aluminum alloy, titanium alloy, gold, silver, aluminum, brass, coper and tight sheet metal fittings, etc.
- Application Industries: Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliance, craft gift, decoration, advertising, metal processing, kitchen processing and other manufacturing and processing industries.

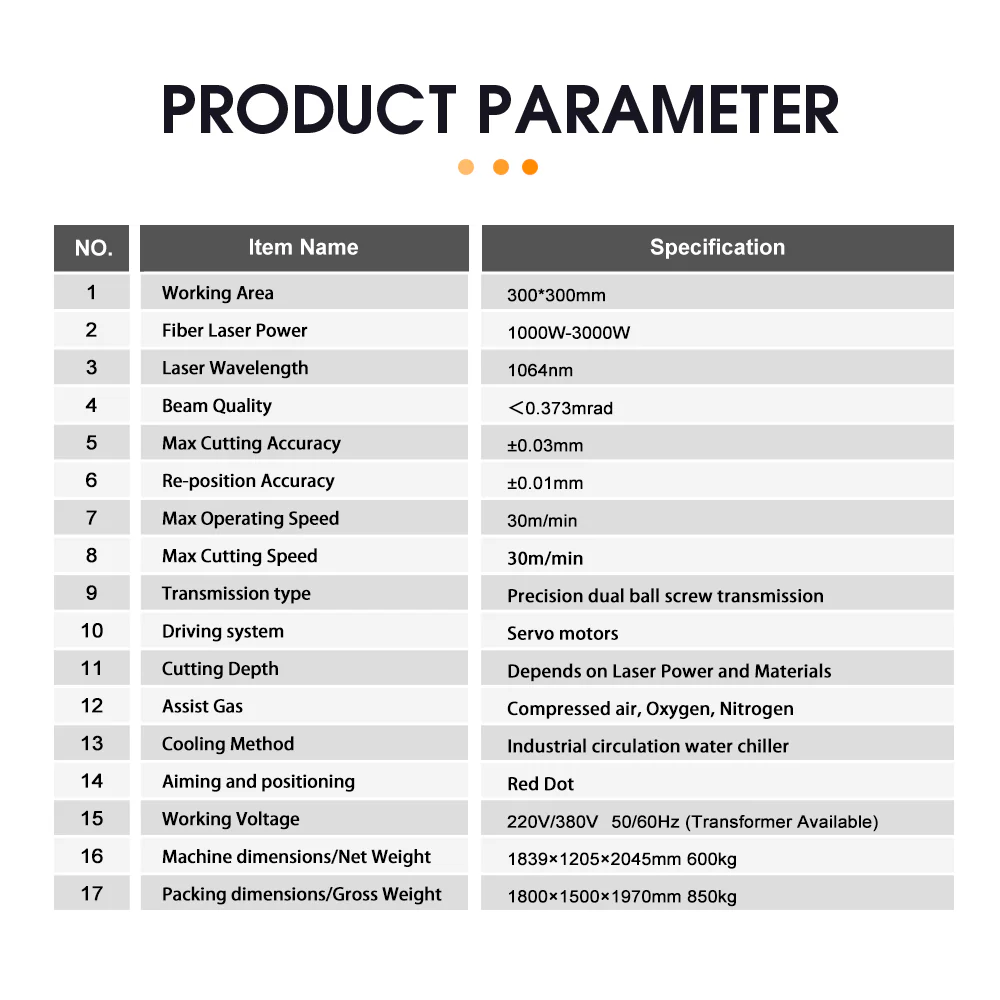

TECHNICAL PARAMETERS
- Model: PFLC-3030
- Working Area: 300*300mm
- Fiber Laser Power: 1000W/1500W
- Laser Wavelength: 1064nm
- Beam Quality: <0.373mrad
- Max Cutting Accuracy: ±0.03mm
- Re-position Accuracy: ±0.01mm
- Max Operating Speed: 30m/min
- Max Cutting Speed: 30m/min
- Transmission Type: Precision Dual Ball Screw Transmission
- Driving System: Servo Motors
- Cutting Depth: Depends on Laser Power and Materials
- Assist Gas: Compressed Air, Oxygen, Nitrogen
- Cooling Method: Industrial Circulation Water Chiller
- Aiming and Positioning: Red Dot
- Working Voltage: 220V/380V 50/60Hz (Transformer Available)
- Machine Dimensions/Net Weight: 890*850*1830mm 600kg
- Packing Dimensions/Gross Weight: 1550*1540*1950mm 850kg
CARING WARRANTY
2 Years Warranty for the Whole Machine and Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly.
DELIVERY
- Remote Assistance for operation issues
- Lifetime Online Technical Support
- Free Shipping to Your Door by Sea around 45-60 days
- No Import Duty for American Customers.
