ZAC 1000W Fiber Laser Cutting Machine 23.6×31.5inch Working Area Full Enclosed Laser Engraving Machine with Auto Focus for Carbon Steel Stainless Steel Gold Aluminum
MAIN FEATURES
- Parameters: 1000W MAX Laser Source, Laser Wavelength: 1064nm, Beam Quality: ＜0.373mrad, Max Cutting Accuracy: ±0.05mm, Re-position Accuracy: ±0.03mm, Max Operating Speed: 30m/min, Max Cutting Speed: 30m/min, Working Area: 600*800mm, Precision dual ball screw transmission, Aiming and Positioning: Red dot

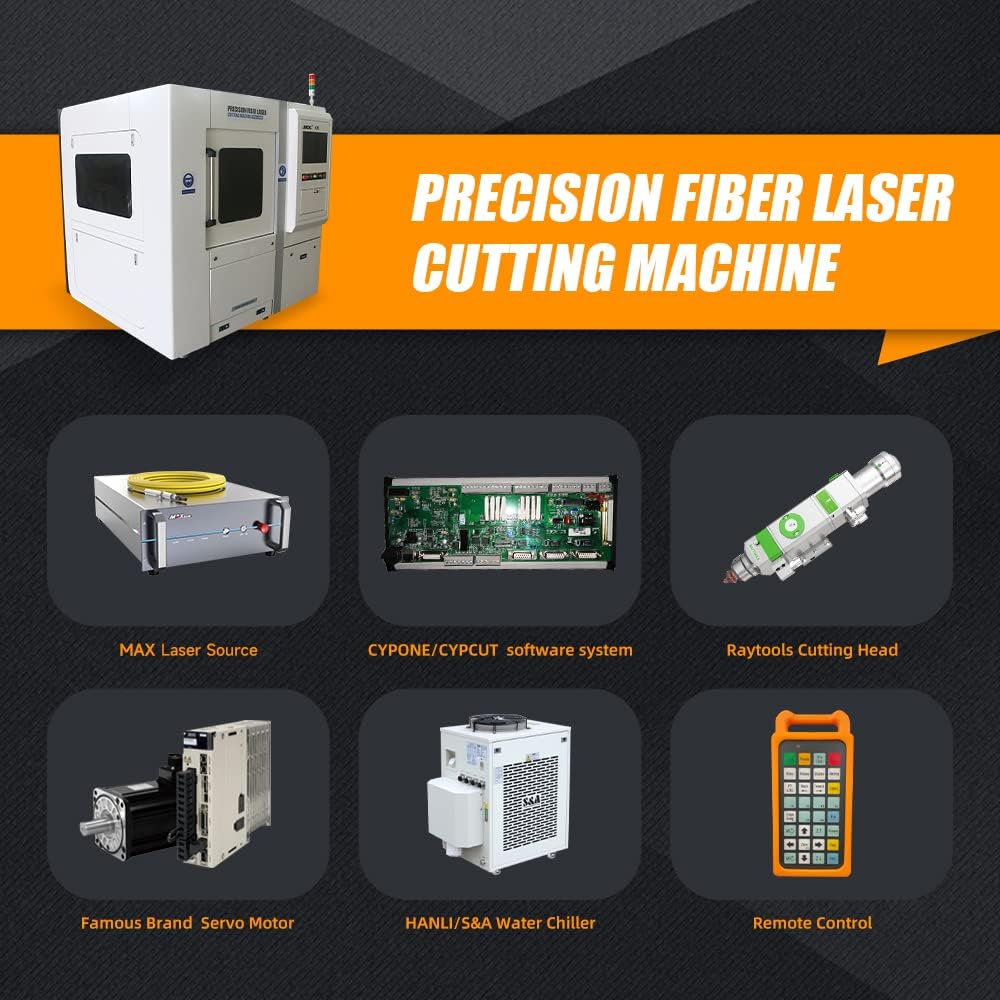

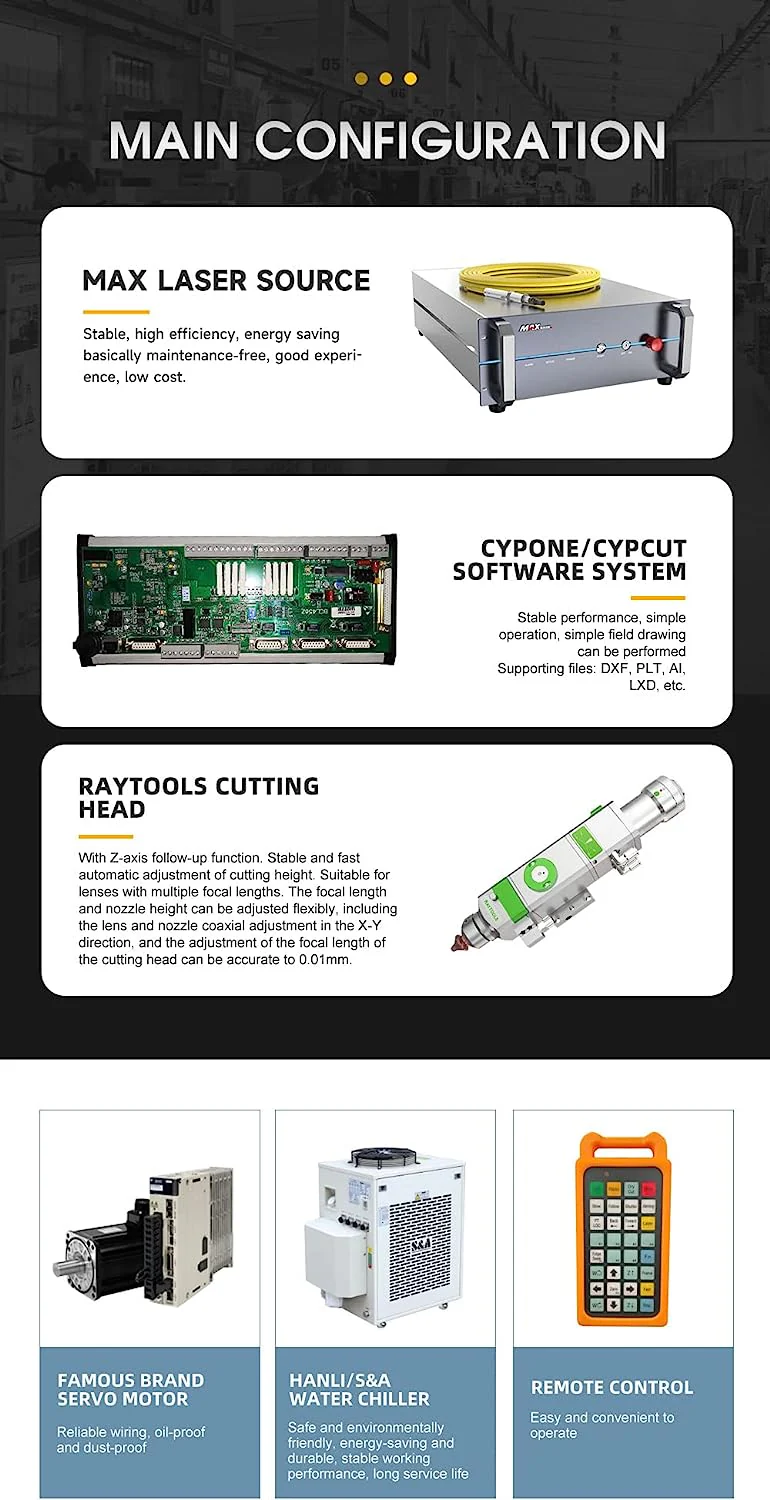

- Main Configurations: MAX laser source, CYPONE/CYPCUT software system, RayTools BT220 cutting head, servo motor(X-axis 400W motor, Y-axis 750W motor, Z-axis 400W motor with band brake), S&A water chiller, HIWIN screw, remote control, marble platform etc.

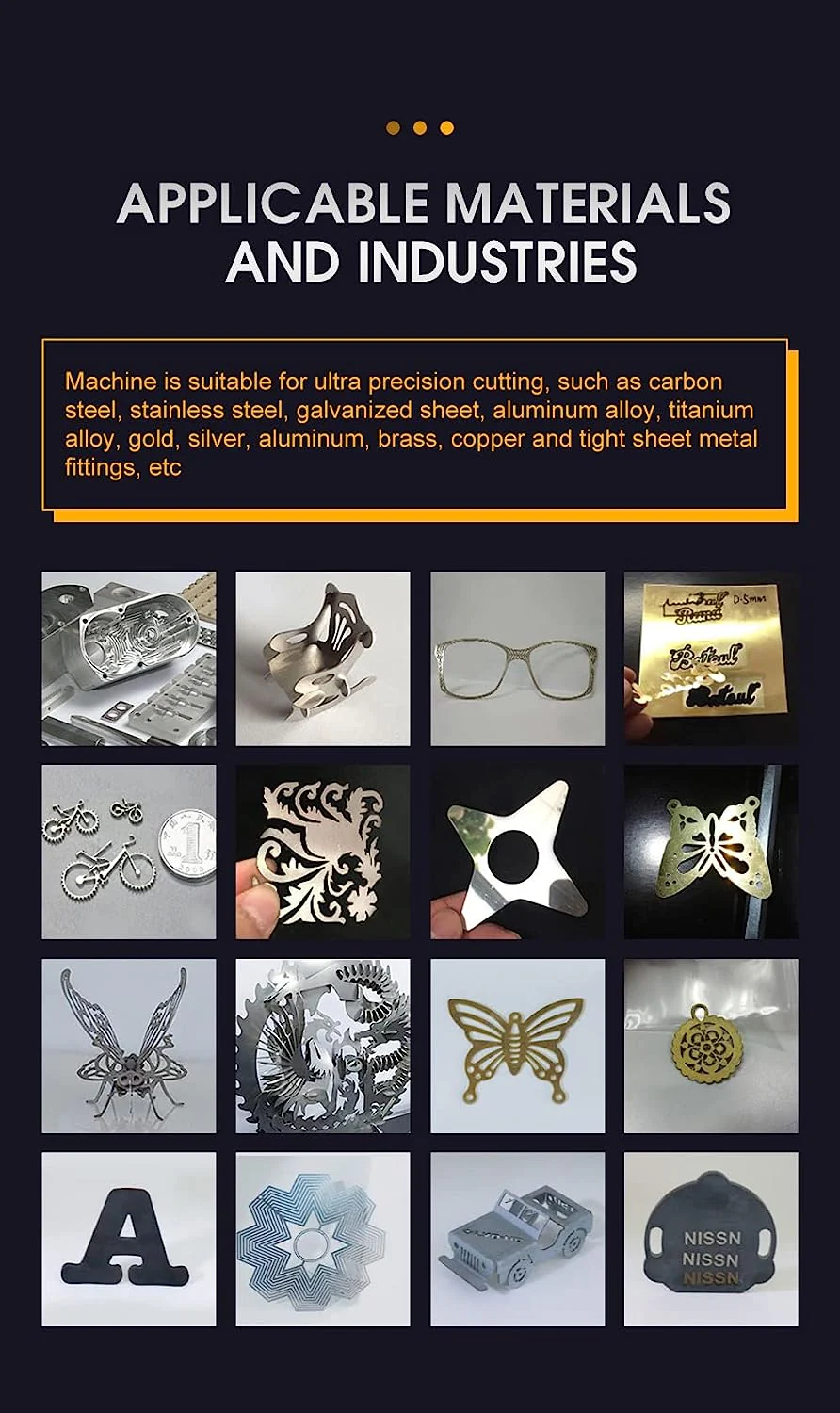

- Applicable Materials and Industries: Machine is suitable for ultra precision cutting, such as carbon steel, stainless steel, galvanized sheet, aluminum alloy, titanium alloy, gold, silver, aluminum, brass, copper and tight sheet metal fittings, etc. Widely used in kitchen wares, advertising signs, decoration, machinery, light and lamps, hardware and tools, automobile parts, display equipment, elevator manufacturing, and many other metal industries
- 6080 Precision Fiber Laser Cutting Machine: This 1KW high precison fiber laser cutter engraver machine adopts ultra-high precision linear motor module, compact structure and low power loss, safe, reliable, long service life.

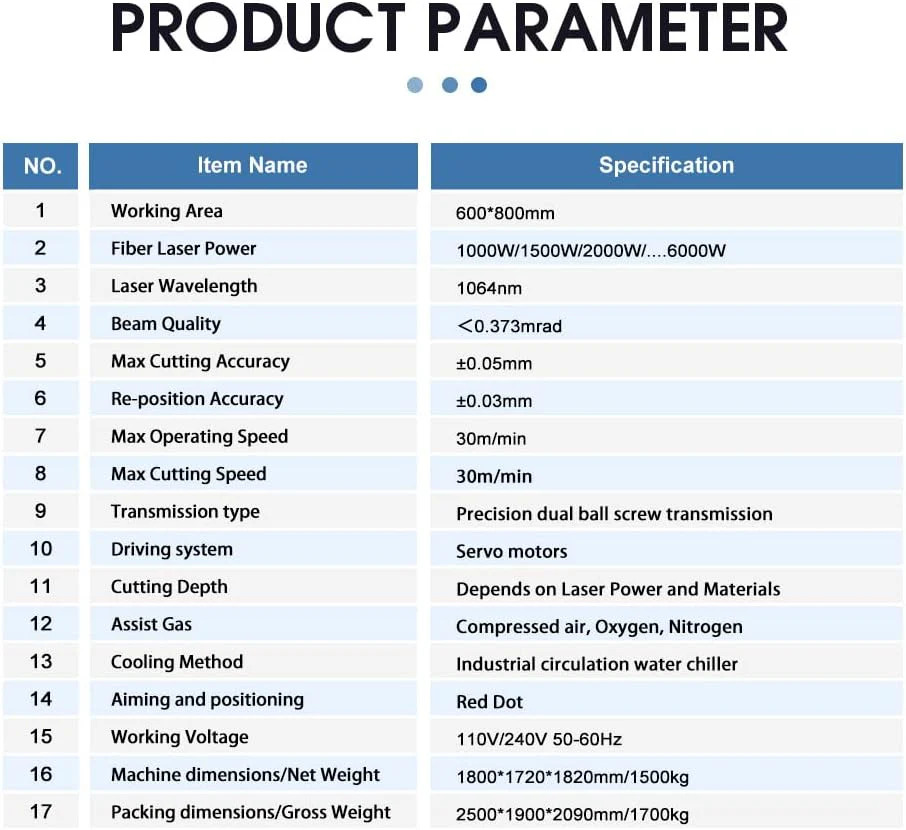

TECHNICAL PARAMETERS
- Working Area: 600*800mm
- Fiber Laser Power: 1000W/1500W/2000W...6000W
- Laser Wavelength: 1064nm
- Beam Quality: <0.373mrad
- Max Cutting Accuracy: ±0.05mm
- Re-position Accuracy: ±0.03mm
- Max Operating/Cutting Speed: 30m/min
- Transmission Type: Precision dual ball screw transmission
- Driving System: Servo Motors
- Drving Depth: Depends on Laser Power and Materials
- Assist Gas: Compressed air, Oxygen, Nitrogen
- Cooling Method: Industrial circulation water chiller
- Aiming and positioning: Red Dot
- Working Voltage: 110V/240V 50-60Hz
- Machine Dimensions/Net Weight: 1800*1720*1820mm/1500kg
- Packing Dimension/Gross Weight: 2500*1900*2090mm/1700kg
CARING WARRANTY
1 Year Warranty for the Whole Machine, 2 Years for Laser Source. Provide installation video and remote technical assistance. No import duty for US customers.
DELIVERY
- Remote Assistance for operation issues
- Lifetime Online Technical Support
- Free Shipping to Your Door by Sea around 45-60days
- No Import Duty for American Customers
Product Information
