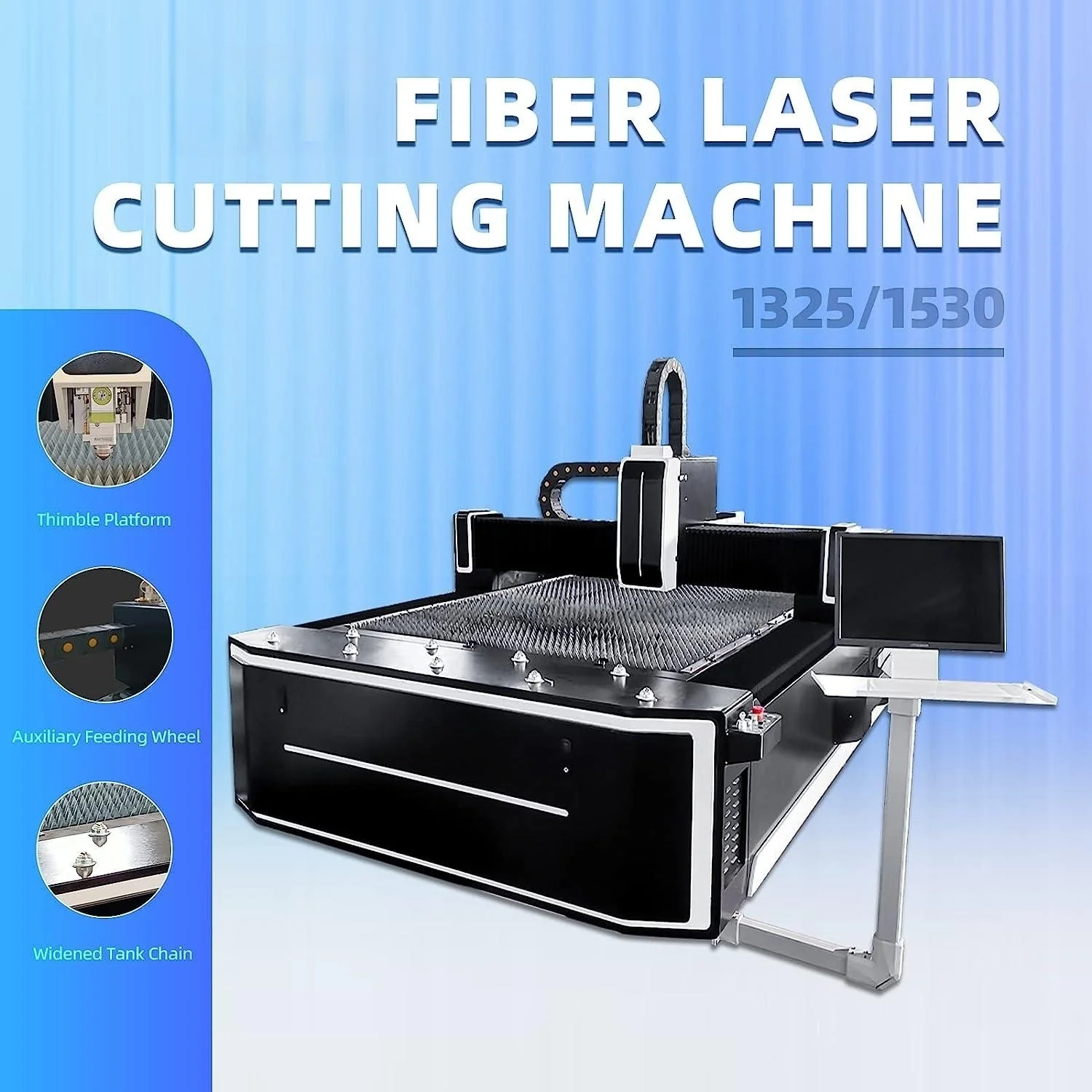

ZAC Fiber Laser Cutter MAX 1000W/1500W/2000W Metal Laser Cutting Machine 1300×2500mm(51.2×98.4inch) Working Area
MAIN FEATURES
- Working Area: 1300*2500mm, 1000W/1500W/2000W Max Laser Source, Laser Wavelength: 1080nm, Beam Quality: <0.373mrad, Cutting Accuracy: ±0.05mm, Re-position Accuracy: ±0.03mm, Max. Acceleration: 1.2G, Max. Cutting Speed: 60m/min, Assist Gas: Air, Oxygen, Nitrogen, Cooling Method: Industrial Circulation Water Chiller, Aiming and Positioning: Red Dot.
- MAX Laser Source with modular design, the system is highly integrated, maintenance-free, and highly reliable. S&A Dual-temperature Water Chiller to keep the oscillator working properly. CypCut/CypOne Software System, simple and convenient operation and supports DXF/DWG format.
- RAYTOOLS Cutting Head with the BM series high-performance auto-focusing, mature and stable technology and a built-in motor drive unit. Continuous focusing can be set through the program to complete the fast perforation of thick plates and automatic cutting of plates of different thicknesses and materials.
- Imported servo with balanced and stable driving force, low noise, smooth movement, no error in synchronization, higher positioning accuracy, and faster positioning speed. High-strength aluminum beam with high strength, strong resistance to deformation, optimized to reduce weight, speed up movement, and greatly increase processing speed.
- Applicable Materials: Fiber laser cutting machine is widely used in carbon steel, manganese steel, stainless steel, color steel plate, foliate lamina, alumnum plate, alumnum alloy, brass, copper, titanium plate etc.

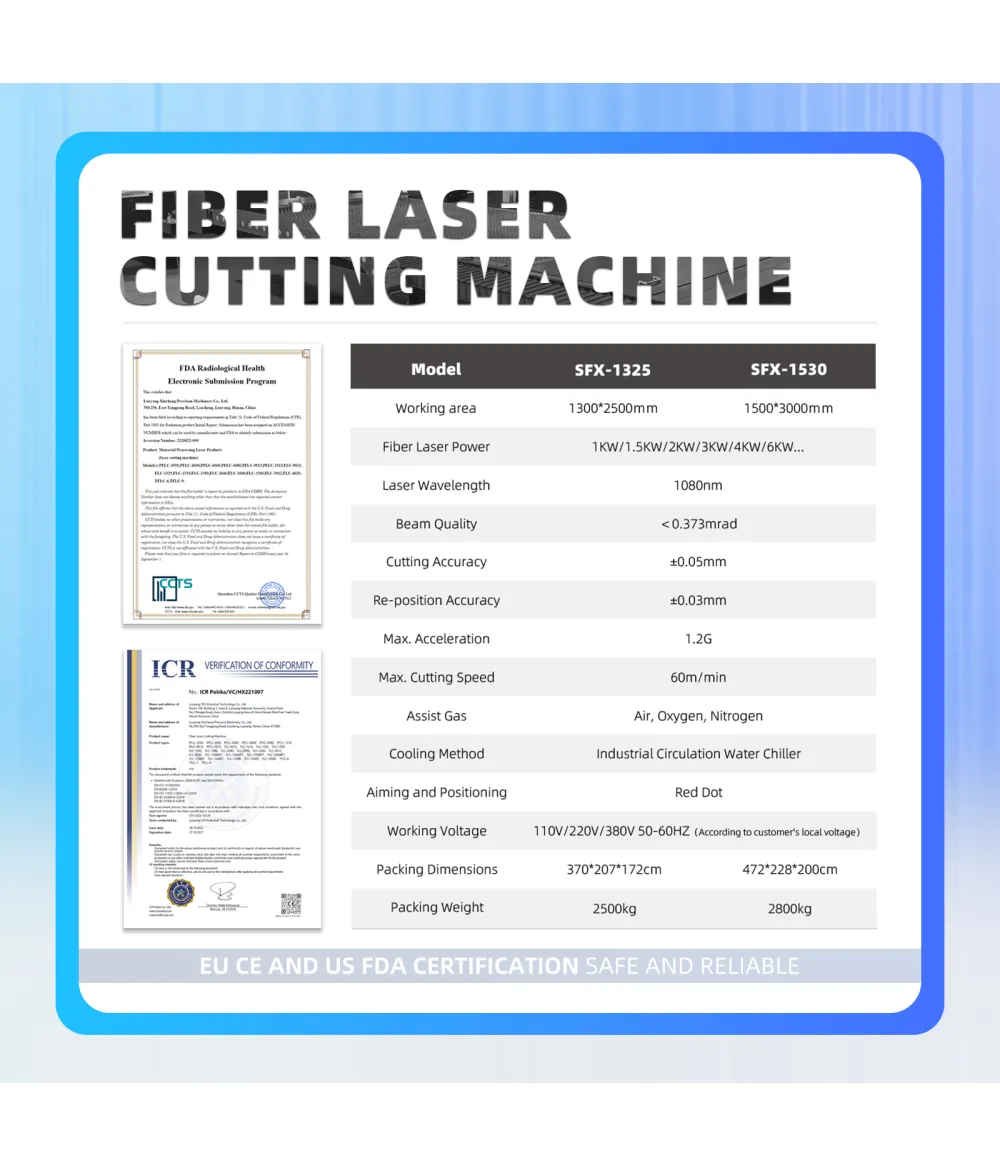

TECHNICAL PARAMETERS
- Model: SFX-1325
- Working Area: 1300*2500mm
- Fiber Laser Power: 1KW/1.5KW/2KW
- Laser Wavelength: 1080nm
- Beam Quality: <0.373mrad
- Cutting Accuracy: ±0.05mm
- Re-position Accuracy: ±0.03mm
- Max. Acceleration: 1.2G
- Max. Cutting Speed: 60m/min
- Assist Gas: Air, Oxygen, Nitrogen
- Cooling Method: Industrial Circulation Water Chiller
- Aiming and Positioning: Red Dot
- Working Voltage: 110V/220V/380V 50-60HZ(According to customer's local voltage)
- Packing Dimensions: 370*207*172cm
- Packing Weight: 2500kg
DELIEVERY
- Specialized After-sale Center is Set Up in NY, USA;
- 1 Year Warranty for the Whole Machine, 2 Years Warranty for the Laser Source. CE & FDA Certificate.
- DDP Delivery for US Customers, no Import Duty and no Other Costs.
- Delivered via Sea and Truck about 70-80 Days to Your Door
